DCL Series

Back

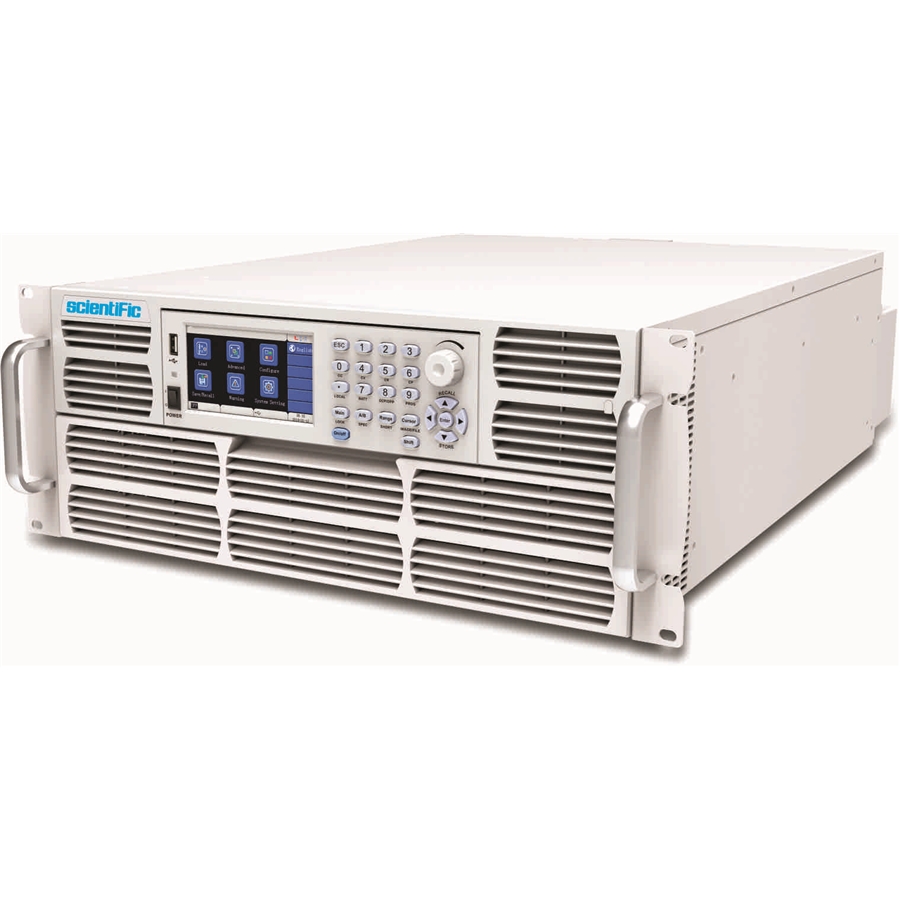

DCL Series

Programmable DC Electronic Load

  • Specification

  • Features/Description

Max. Voltage
200 V to 1200 V
Max. Current
60 A to 1020 A
Max. Power
600 W to 27900 W
  • Four basic working modes CV/CC/CR/ CP and complex operating modes CV+CC/CV+CR/CR+CC .
  • Adjustable current slew rate, adjustable CV loop speed.
  • OCP / OPP testing function.
  • Full protection: OCP, OPP, OTP, over voltage and reverse alarm.
  • 50 kHz high-speed CC/CR dynamic mode.
  • 500 kHz high-speed voltage and current sampling rate.
