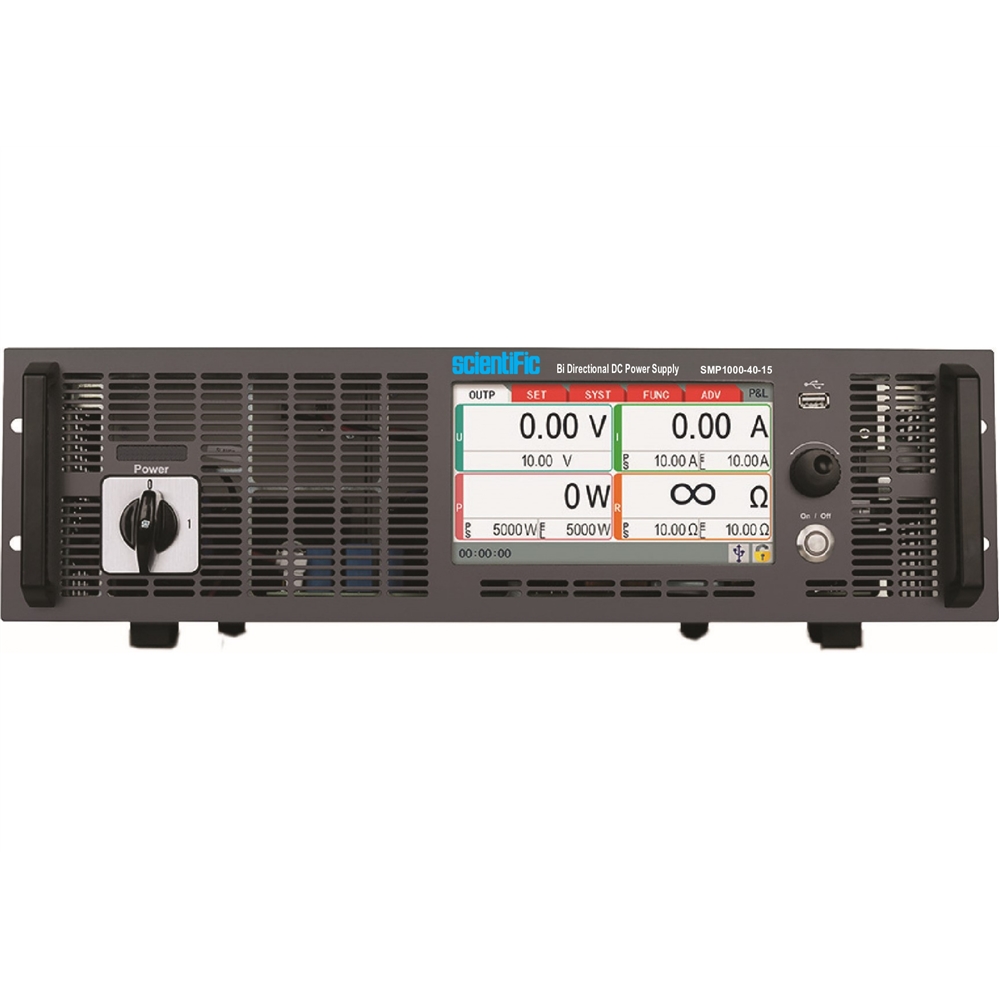

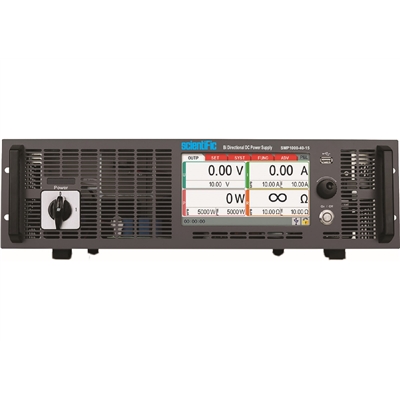

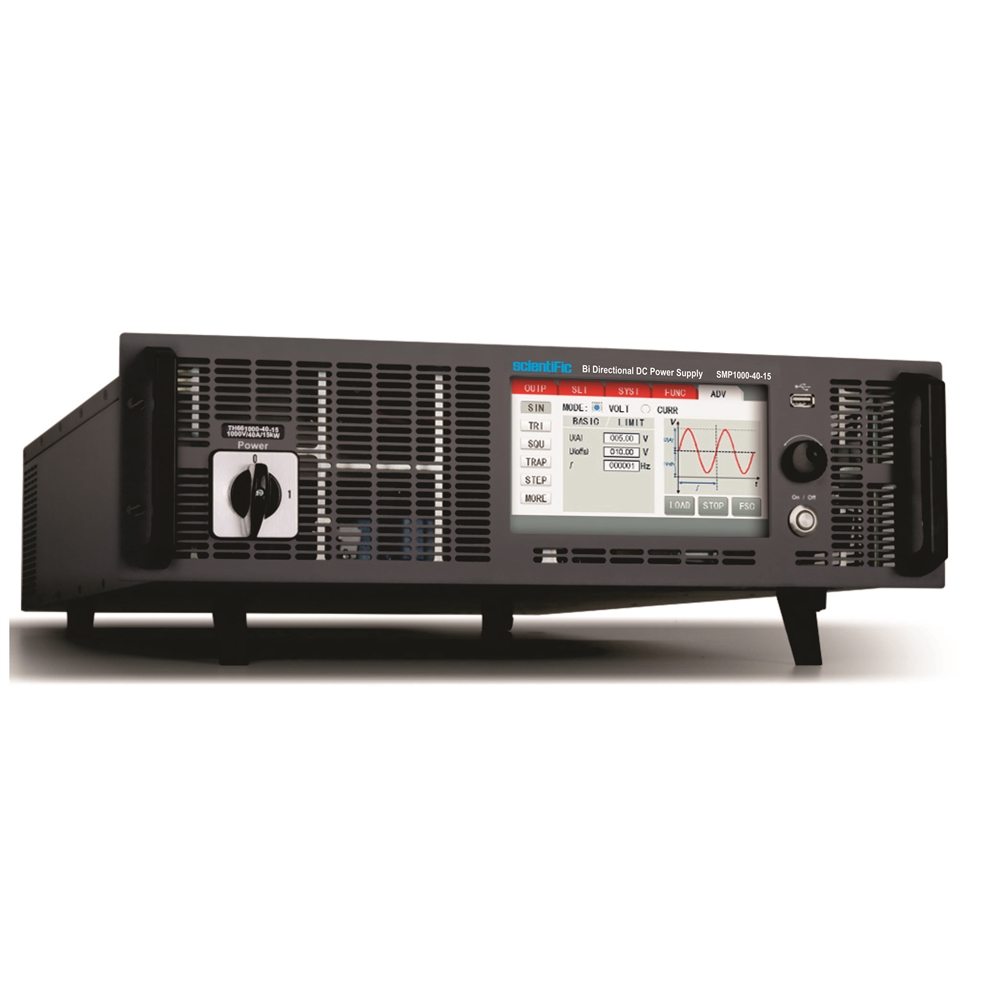

Bi Directional DC Power Supply 5kW/10kW/15kW
Specification
Features/Description
Power
5kW/10kW/15kW
Voltage
80/200/500/750 V
Current
20-360 A
High power density: 3U high single machine power 5kW/10kW/15kW
Master-slave mode parallel, expandable to 480kW
Bidirectional power supply, integrating laboratory power supply and regenerative electronic load
High accuracy and high resolution, low ripple and low noise
Built-in function generator: built-in sine, triangle, arbitrary wave and other waveforms, support custom waveforms
7-inch 24-bit color TFT LCD capacitive touch screen, 800×480 resolution
Photovoltaic simulation test: simple PV test, MPPT maximum power point tracking
Support SCPI and MODBUS protocols
