PSD7303B

Back
PSD7303B

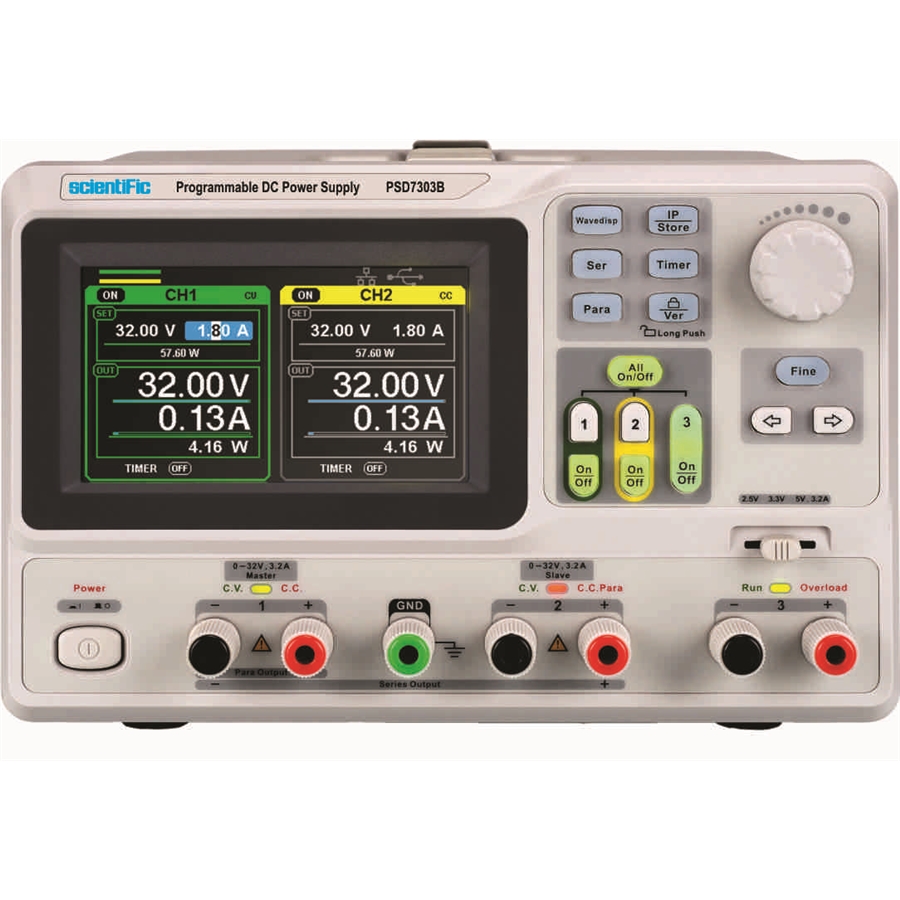

Programmable 3 Channel Power Supply

  • Specification

  • Features/Description

Channels
3
Power
220W
Voltage
2x0-32V,1x2.5/3.3/5V
Current
2x0-3.2A,1x3.2A
No. of Output
3
  • 3 independent controlled and isolated output, 32V/3.2A×2, 2.5V/3.3V/5V/3.2A×1, total 220W
  • 4 digits Voltage, 3 digits Current Display
  • Minimum Resolution: 10mV/10mA
  • Supports panel timing output functions
  • 3 types of output modes: independent, series, parallel
  • Intelligent temperature-controlled fan , effectively reducing noise
  • Short circuit and overload protection
  • Clear graphical interface, with the waveform display function
  • 4.3 inch true color TFT - LCD480x272 display
  • Internal 5 groups of system parameter save/recall, supports data storage space expansion
  • Provides PC software , supports SCPI, Lab View driver.
