Safety Testers
>
IEC / EN 60950 Impulse Testers

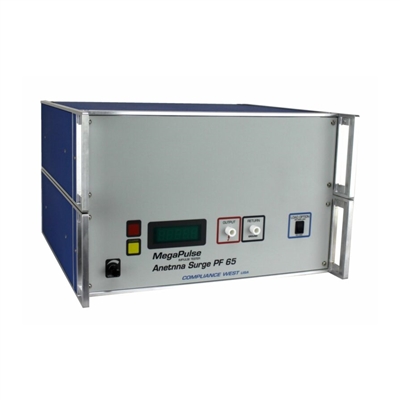

MegaPulse Antenna Surge PF 65
Back
High Voltage Impulse Generator
Overview
Test voltage up to 10kV.
Voltage meter indicates capacitor charge voltage.
Capacitor charge voltage set, charge command and trigger is controlled manually from the front panel or via optional USB TestMinder control.
Ergonomically designed for safety, speed and efficiency.
Supplied external interlock disables HV output and defeats test when circuit is open.
4 MΩ load resistor included.
Cables, manual and calibration certificate included.
Design includes IEC 65 Switch
One year calibration cycle
One year warranty
