Analyzers
>
Impedance Analyzers

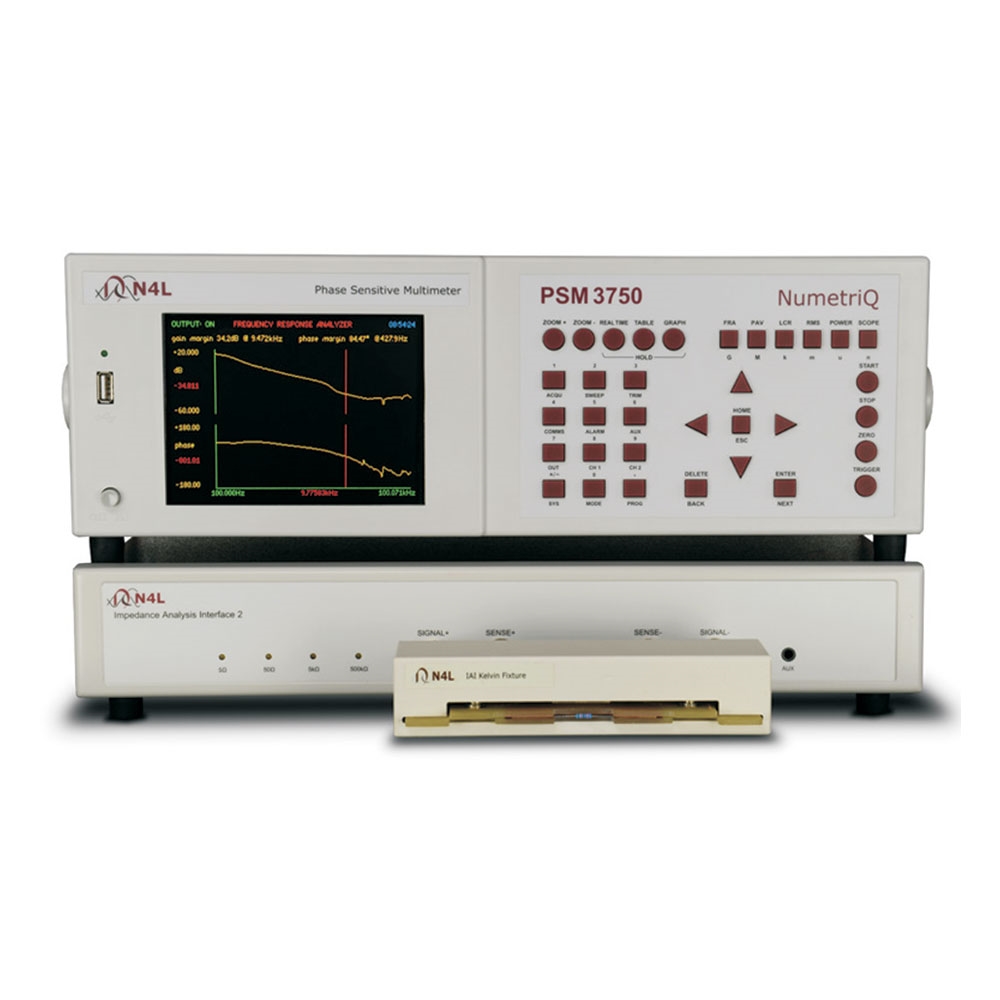

PSM 3750
Back
DC to 50 MHz Impedance Analyzer
Overview
Frequency range 10µHz to 50MHz
Models available in 2 or 3 channels
Gain accuracy at 0.01 dB + 0.1 dB/ MHz < 5MHz
0.31 dB + 0.04 dB/ MHz: < 50MHz
Phase accuracy at 0.025°< 10 kHz
0.05° + 0.00025°/ kHz < 50MHz
Measurement Parameters: L, C, R, Z, Phase, QF, Tan(
delta
), Series and Parallel circuit
Available Options: IAI2 Impedance Analysis Interface
Datasheet
Manual
Add to Enquiry
