SME1130
Back

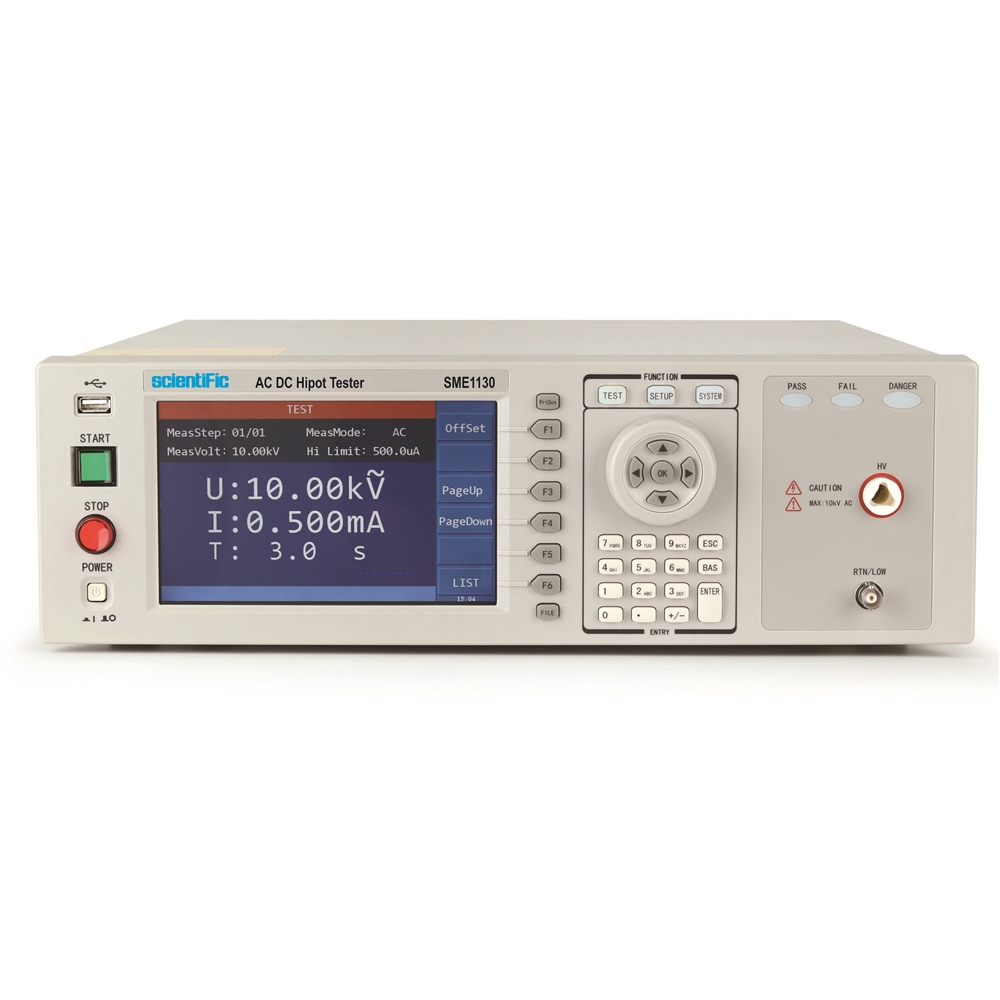

AC DC Hipot / IR Tester
Features/Description
Output voltage:AC: 10kV/20mA; DC:12kV/10mA
Insulation Resistance Test Range : 0.1MΩ ~ 50.0GΩ
Insulation Resistance Tes O/P Voltage: 0.05 ~ 12.0kV
ARC detection function.
OSC check function.
One-click screen capture function.

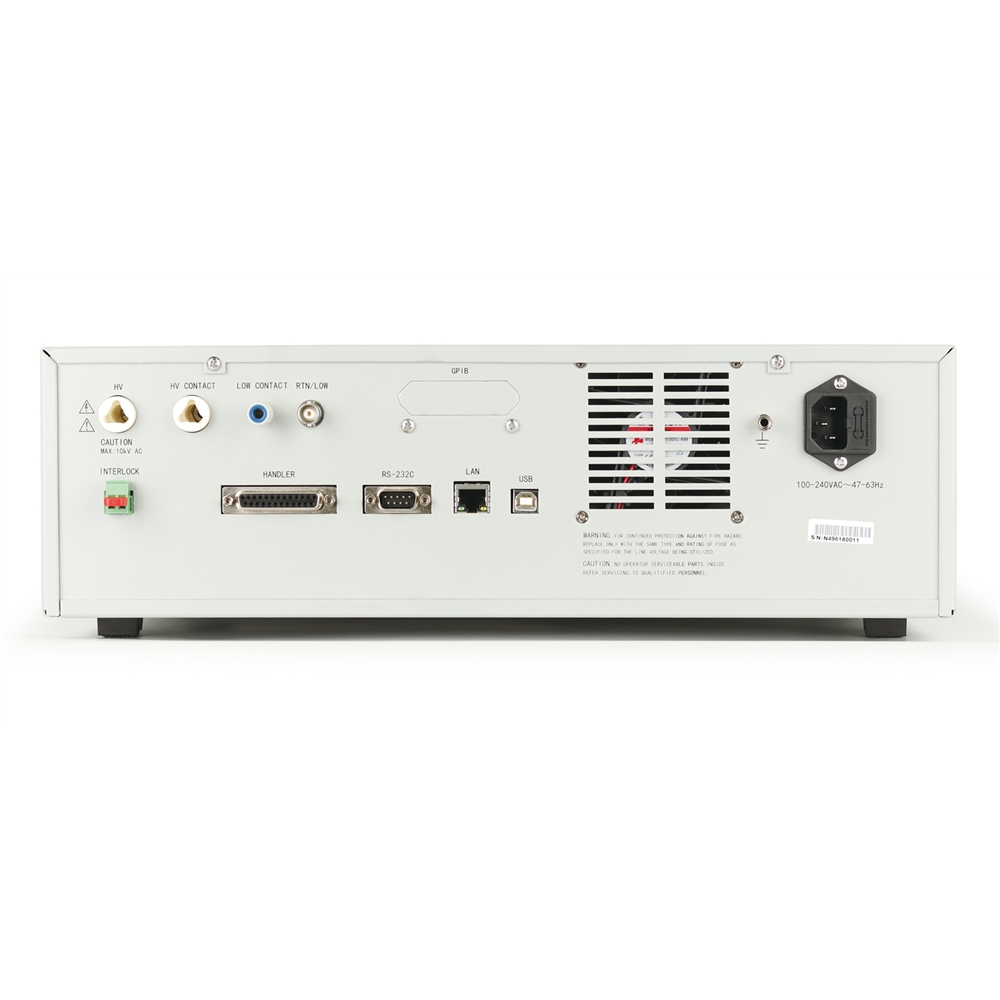

Rear panel output function for automatic test of production line.
Storage :100 files, up to 50 steps per file.
Interface: RS232, USB Device, USB Host, LAN, Handler
7 inch 800 x 480 dots, TFT-LCD display
Datasheet
Manual
