SMO800X Series

Back
SMO800X Series
SMO800X Series
SMO800X Series

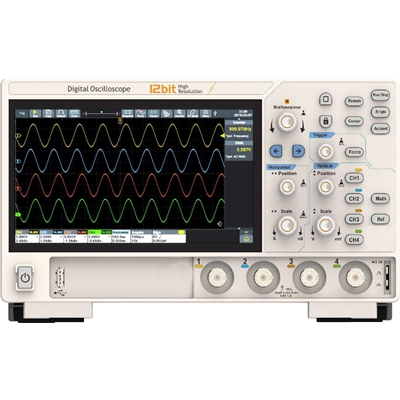

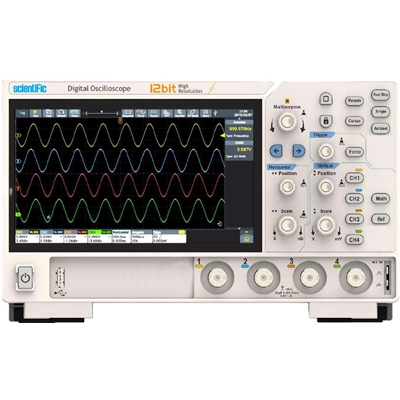

70MHz to 200MHz bandwidth Digital Storage Oscilloscope

  • Specification

  • Features/Description

Bandwidth
70 MHz- 200MHz
No. of Channels
2/4
Max. Sampling rate
Max 1.25GSa/s, 625MSa/s (Dual Channel), 312MSa/s (Four Channel)
Record length
50M
PC Interface
HDMI, USB device, USB Host, Trig Out (P/F), LAN
Bandwidth Upgrade
No
Max. Memory Depth
50M
Model Bandwidth No. of Channels
SMO802X 70MHz 2
SMO804X 70MHz 4
SMO812X 100MHz 2
SMO814X 100MHz 4
SMO822X 200MHz  5

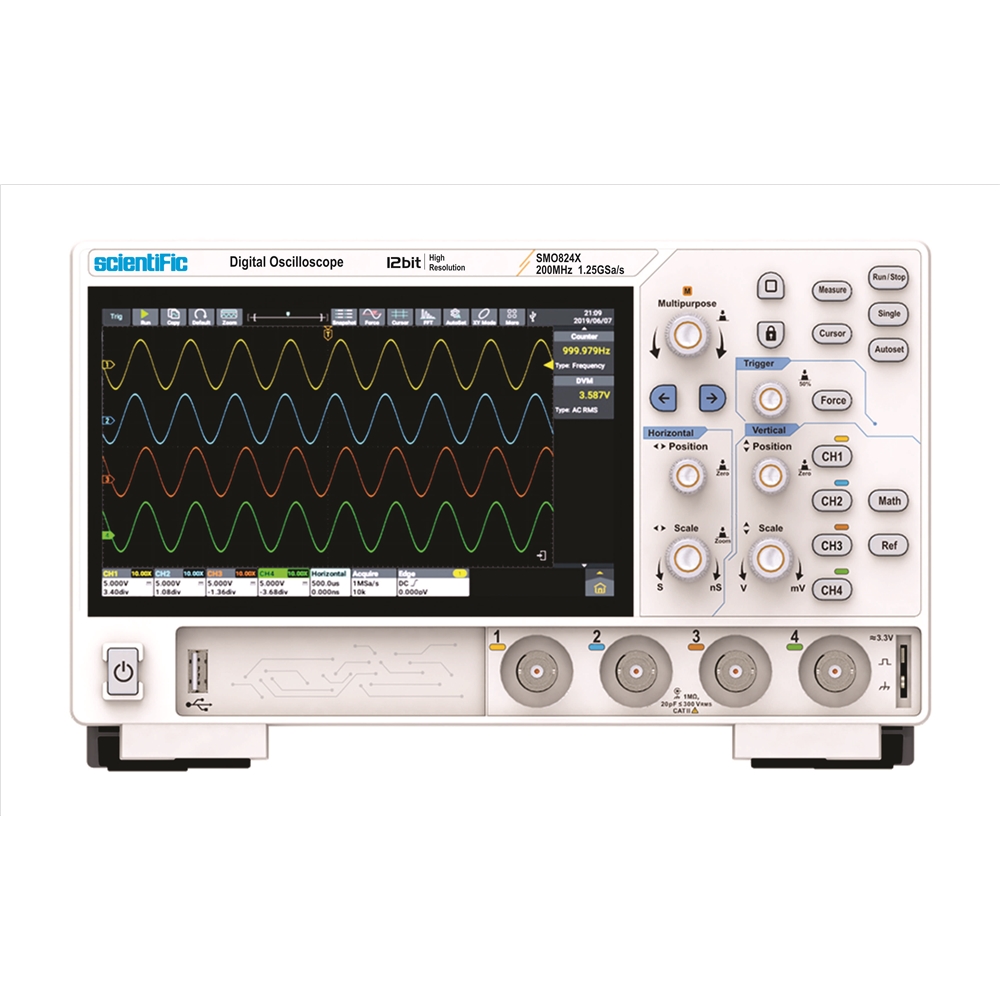

SMO824X 200MHz 4
  • 1.25GSa/s real time sampling rate
  • 50M storage depth, up to700,000 wfms/s waveform refresh rate.
  • 1M-point FFT analysis ensure accurate frequency component display.
  • 256 level grayscale and color persistence enhance waveform visualization.

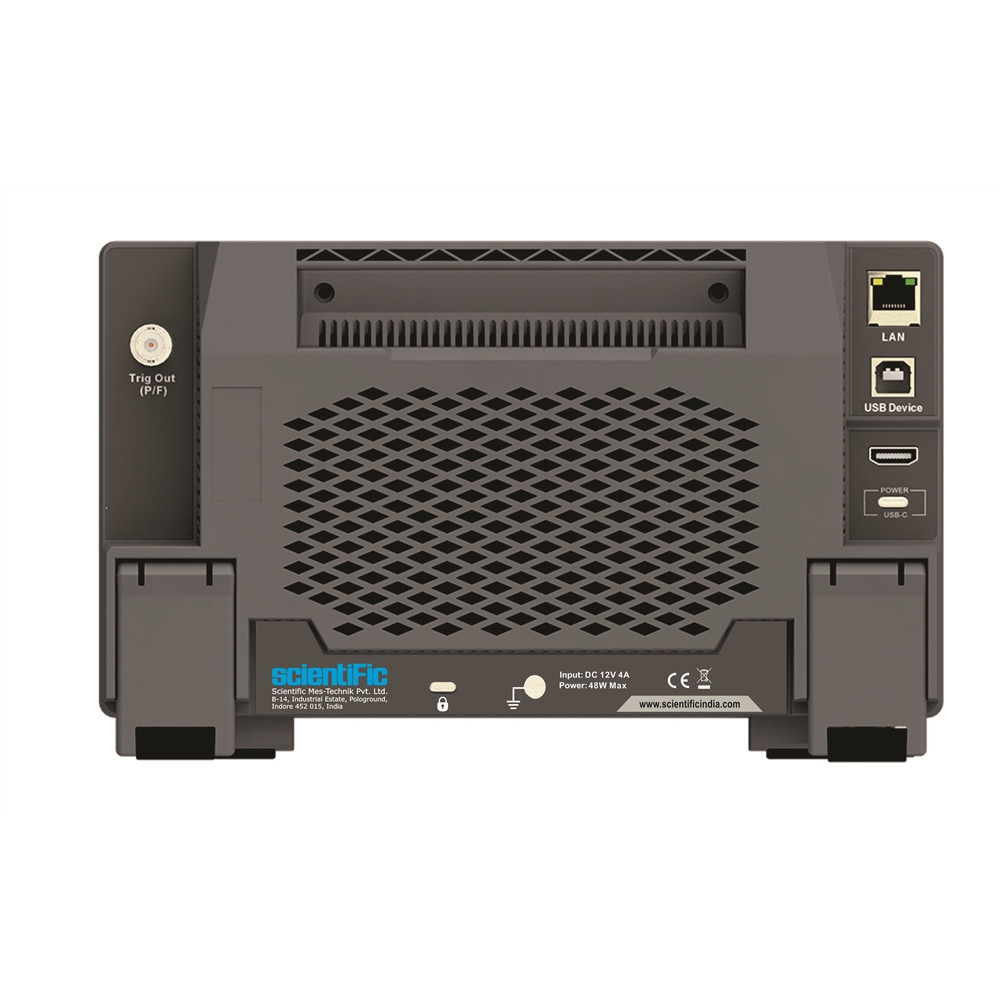

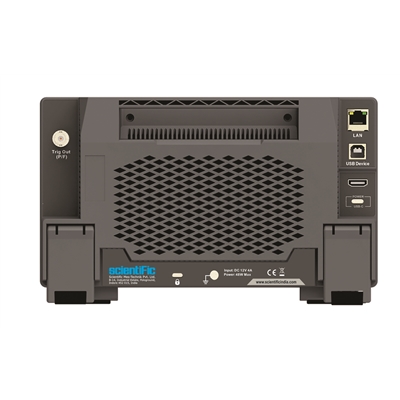

  • Equipped with HDMI, USB Device, USB Host, Trig Out (P/F), LAN supporting Web Control and SCPI command tools.
