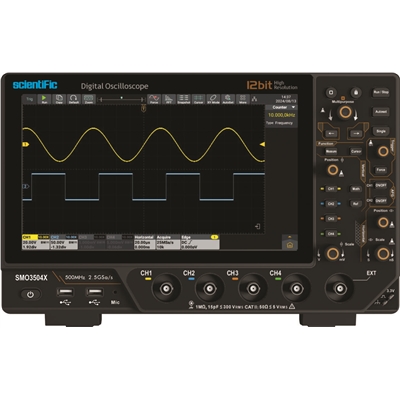

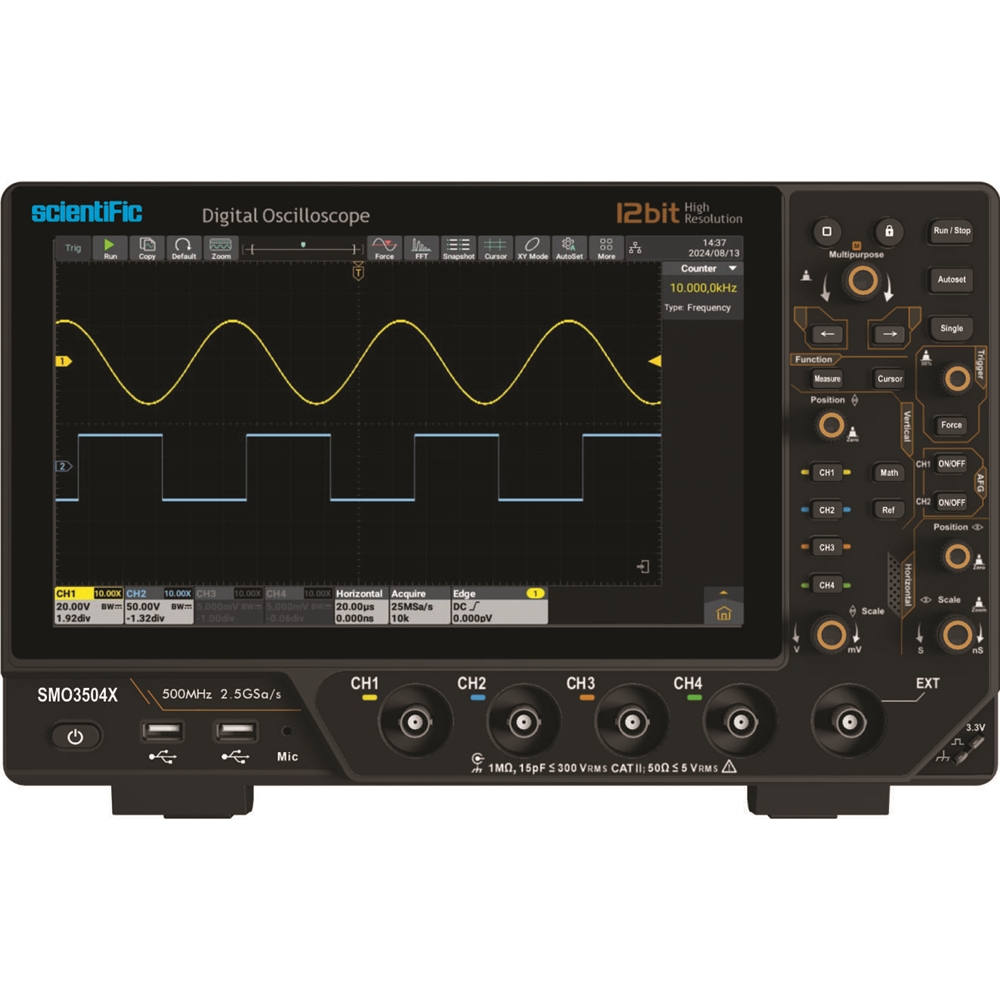

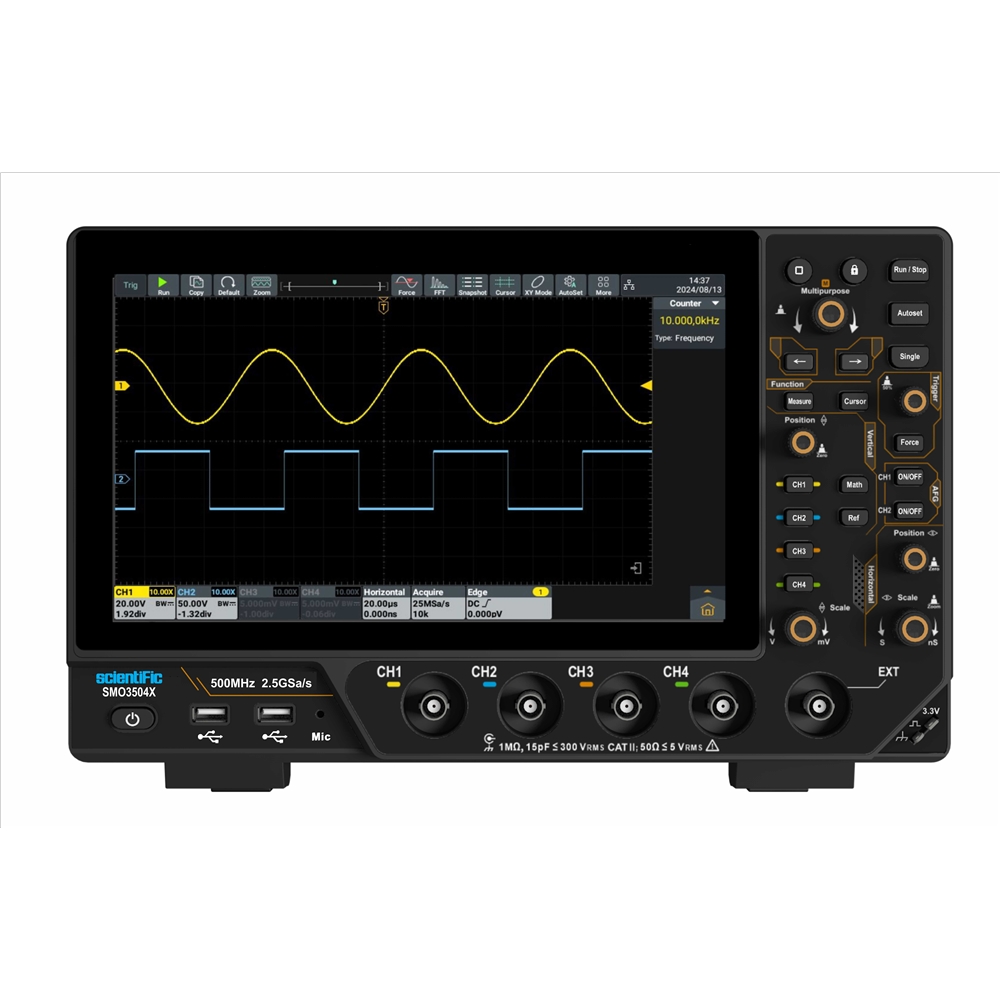

100MHz to 500MHz bandwidth Digital Storage Oscilloscope
Specification
Features/Description
Bandwidth
100MHz ~ 500MHz
No. of Channels
2/4
Max. Sampling rate
2.5GS/s
Record length
100M
PC Interface

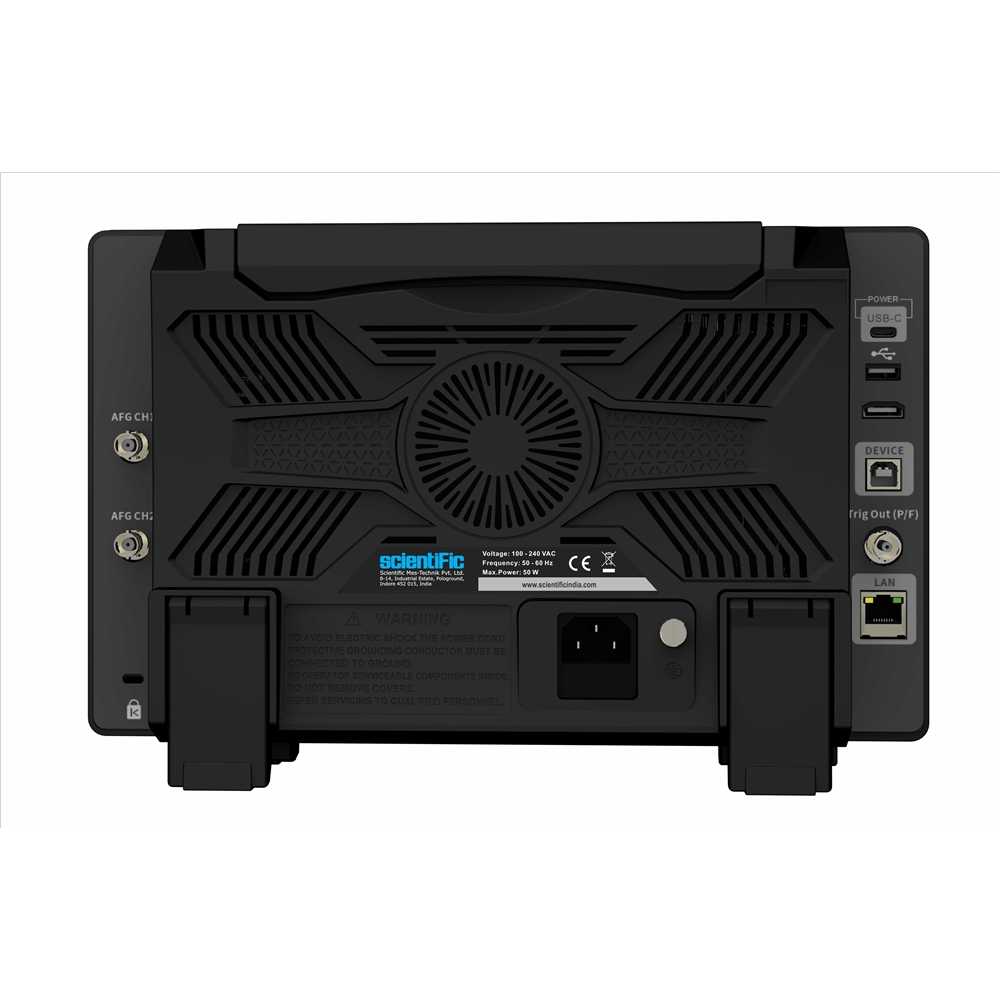

HDMI : USB device * 1 USB Host * 3, LAN
Bandwidth Upgrade
No
Max. Memory Depth
100M
2.5GS/s real time sampling rate, higher storage, faster refresh rate.
12-bit ADC, providing 16 times the measurement accuracy of a standard 8-bit oscilloscope, delivering better waveform details and more accurate small signal measurement
100M storage depth, up to 500,000wfms/s waveform refresh rate, ensuring clear signal capture.
Waveform cloning and Bode plot functions (AFG Models)
1M-point FFT analysis ensures accurate frequency component display.
50Ω impedance matching reduces, reflection, improves accuracy and minimizes interference
